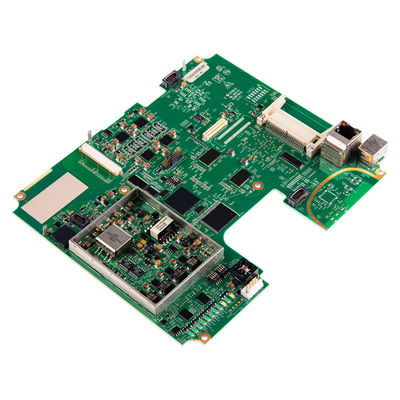

X Ray Tested 4 Layer Industrial PCB Assembly With Green Solder Mask And FR4 Base

Product Description:

The board thickness of our Industrial Control PCB Assembly is 1.6mm, providing durability and stability. The minimum line width is 0.1mm, allowing for precise and accurate signal transmission. The minimum hole size is 0.2mm, enabling the efficient flow of electricity.

We offer a variety of base materials to choose from, including FR4, ROGERS, Aluminum, and High TG. Each material offers unique benefits, such as thermal conductivity, high strength, and low dielectric loss.

Our Industrial Control PCB Assembly is designed and manufactured with the highest quality standards in mind. We use advanced technology and equipment to ensure that every product meets or exceeds industry standards.

Whether you need a Process Control Printed Circuit Board Assembly, a Factory Automation PCB Assembly, or a Manufacturing Control Circuit Board Assembly, our Industrial Control PCB Assembly is the perfect solution. Contact us today to learn more about our product and how it can benefit your business.

Features:

• Product Name: Industrial Control PCB Assembly
• Solder Mask Color: Green, Red, Blue, Black, White
• Board Thickness: 1.6MM
• Minimum Linewidth: 0.075mm
• Base Material: FR4/ROGERS/Aluminum/High TG
• Maximum Dimension: 610 X 1100mm

This Industrial Control PCB Assembly is perfect for process control, plant control, and other industrial applications. The board has a thickness of 1.6MM and a minimum linewidth of 0.075mm, ensuring accurate and reliable performance. It is available in green, red, blue, black, or white solder mask colors and can be made from FR4, ROGERS, aluminum, or high TG base materials. The maximum dimension of the board is 610 X 1100mm, making it suitable for a wide range of industrial control applications.

Technical Parameters:

Applications:

The minimum hole size for Industrial Control PCB Assembly is 0.2 mm, which ensures that the PCB is capable of handling high levels of current and voltage. This makes it suitable for use in a wide range of industrial applications, including motor control, power supplies, and process control systems. The silkscreen color options for these PCB assemblies are white, black, and yellow, which allows customers to choose the color that best suits their needs.

The minimum linewidth for Industrial Control PCB Assembly is 0.075mm, which ensures that the PCB is capable of handling high-speed signals and complex circuits. This makes it suitable for use in a wide range of industrial automation applications, including robotics, machine vision, and control systems. The maximum dimension for these PCB assemblies is 610 x 1100mm, which allows them to be used in a wide range of industrial control scenarios.

Industrial Control PCB Assembly is ideal for use in a wide range of industrial automation and process control applications, including:

• Motor control systems
• Power supplies
• Process control systems
• Robotics
• Machine vision
• Control systems

Overall, Industrial Control PCB Assembly is a highly reliable, durable, and efficient solution for industrial automation and process control. With a minimum hole size of 0.2 mm, a silkscreen color option of white, black, or yellow, a minimum linewidth of 0.075mm, and a maximum dimension of 610 x 1100mm, these PCB assemblies are ideal for a wide range of industrial control scenarios.

Customization:

Customize your Industrial Control PCB Assembly with our product customization services:

• Lead Time: 3-5 Days
• Test: AOI, X-Ray, Flying Probe, ICT, FCT
• Base Material: FR4/ROGERS/Aluminum/High TG
• Layer Count: 4 Layers
• Testing Service: 100% E-testing,AOI

Trust us to provide the best Plant Control Printed Circuit Board Assembly for your industrial control needs.

Support and Services:

Our Industrial Control PCB Assembly product is designed to provide high-quality technical support and services to ensure optimal performance and reliability of your industrial control systems. Our team of experienced engineers and technicians are available to assist with all aspects of installation, operation, and maintenance of our products.

We offer a range of services, including troubleshooting, repair, and replacement of faulty components. Our technical support team is available to answer any questions or concerns you may have, and provide guidance on optimizing the performance of your system.

In addition, we provide comprehensive training and documentation to ensure that your team is equipped with the knowledge and skills necessary to operate and maintain our products effectively. Our commitment to customer satisfaction means that we will work with you to address any issues or concerns, and provide ongoing support to ensure that your system operates at peak performance.

Packing and Shipping:

Product Packaging:

• The Industrial Control PCB Assembly product will be packaged in a sturdy cardboard box to ensure its safety during transportation.
• The box will be sealed with industrial-grade packing tape to prevent tampering and damage.
• The product will be wrapped in bubble wrap to provide additional protection during shipping.
• The box will also include a packing slip and any necessary documentation.

Shipping:

• The Industrial Control PCB Assembly product will be shipped via a reputable courier service.
• Shipping costs will vary depending on the destination and shipping method chosen.
• A tracking number will be provided once the product has been shipped.
• Delivery times will depend on the shipping method chosen and the destination.
• International customers are responsible for any customs fees or taxes imposed by their country's government.

FAQ:

A: We offer a wide range of industrial control PCB assembly types including single-sided, double-sided, and multilayer PCBs.

A: We use high-quality materials such as FR4, CEM-1, CEM-3, aluminum, and copper for our industrial control PCB assembly.

A: Yes, we can provide customized industrial control PCB assembly solutions tailored to meet your specific requirements.

A: The lead time for our industrial control PCB assembly depends on the order quantity and complexity of the design. Contact us for more information.

A: We have a strict quality assurance process that includes rigorous testing and inspection to ensure that our industrial control PCB assembly meets industry standards and customer expectations.
