Industrial Control PCB Assembly with 0.075mm Linespace and 20x20mm Max PCB Dimension

Product Description:

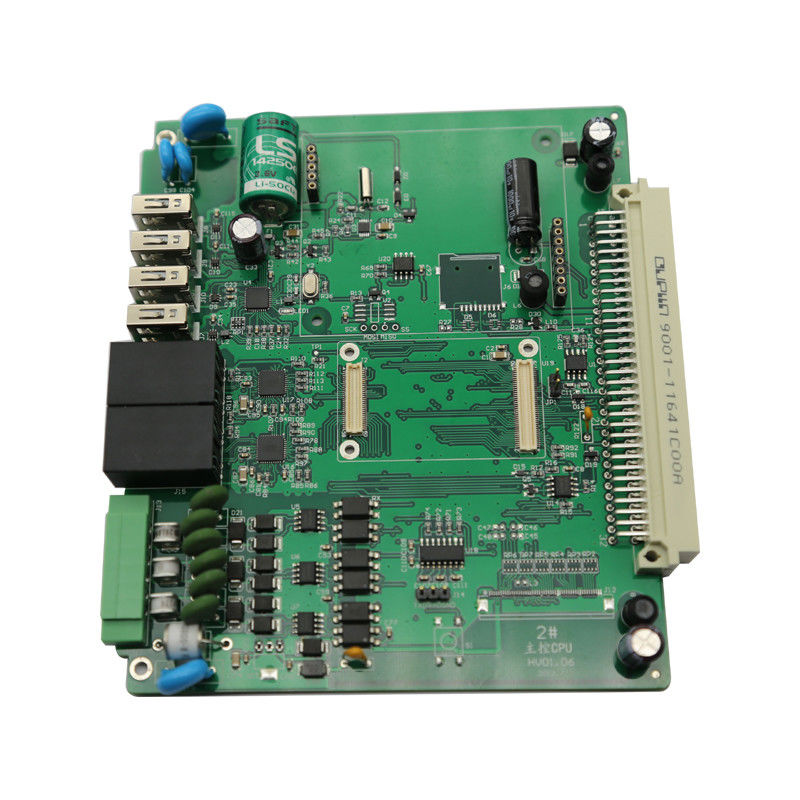

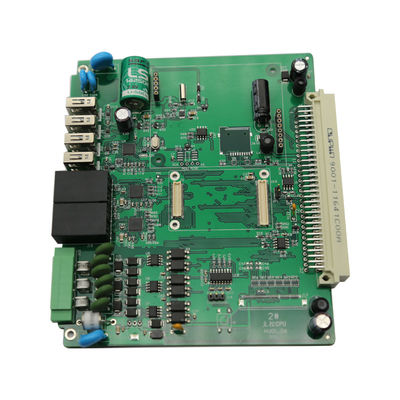

Our Industrial Control PCB Assembly is a 4-layer board that is designed to support complex industrial automation systems. Its exceptional layer count allows for better signal integrity and provides a high degree of flexibility, making it ideal for a wide range of applications. The board's dimensions are 20 inches by 20 inches or 500mm by 500mm, providing ample space for complex designs.

The Industrial Control PCB Assembly is made from high-quality FR-4 material, which ensures durability and longevity. The FR-4 material has high mechanical strength and excellent thermal properties, making it ideal for use in industrial applications where the board is exposed to harsh conditions.

Our PCB assembly is available in three types: Hard, Flexible, and Rigid-flexible. The Hard PCB assembly type is perfect for applications that require a rigid board. The Flexible PCB assembly type is ideal for applications that require a board that can be bent or curved, while the Rigid-flexible PCB assembly type is a combination of both hard and flexible boards, making it ideal for applications where a combination of both is required.

The Industrial Control PCB Assembly comes with a green, red, blue, black, or white solder mask color, giving you the flexibility to choose the color that best suits your needs. The solder mask is essential in protecting the board from oxidation, ensuring the longevity and reliability of the board.

In conclusion, our Industrial Control PCB Assembly is an exceptional product that is designed to cater to all your industrial automation needs. With our state-of-the-art PCB assembly, you can be sure that your industrial automation system will operate with utmost precision and accuracy. So, don't wait any longer, place your order today and experience the benefits of our Industrial Automation PCB Assembly.

Features:

• Product Name: Industrial Control PCB Assembly
• Process Control Printed Circuit Board Assembly
• Equipment Control PCB Assembly
• Min Line Width: 0.1MM
• Minimum Linewidth: 0.075mm
• Minimum Hole Size: 0.2 Mm
• Base Material: FR4/ROGERS/Aluminum/High TG
• Testing Service: 100% E-testing,AOI

Technical Parameters:

Applications:

Our Industrial Control PCB Assembly product is available with silkscreen colors of white, black, or yellow, allowing for easy identification and assembly. In addition to these color options, we also provide testing using AOI, X-Ray, Flying Probe, ICT, and FCT to ensure the highest level of quality and reliability.

With a lead time of just 3-5 days, our Industrial Control PCB Assembly product is designed to meet the tightest schedules and deadlines. This makes it an ideal choice for manufacturers who need to quickly produce high-quality circuit boards for their machines and systems.

Whether you need a machine control PCB assembly, factory control circuit board assembly, or process control printed circuit board assembly, our Industrial Control PCB Assembly product is the perfect solution. With its high-quality manufacturing and rigorous testing standards, you can be confident that your circuit boards will perform flawlessly in even the most demanding industrial environments.
