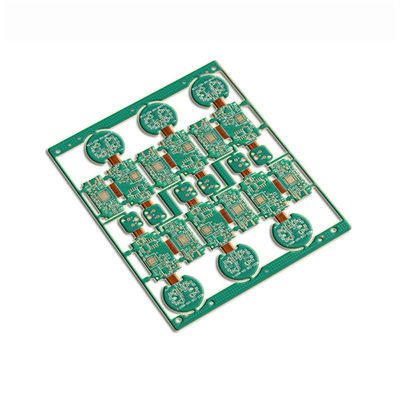

Polyimide Flex Rigid-Flex Circuitry The Perfect Solution for Your Green and Sustainable Product

Product Description:

Our Rigid Flexible PCB is available in a layer count of 2-8 layers, making it suitable for a wide range of applications. This innovative circuit board is designed with a Polyimide base material, which is known for its durability and flexibility. The Polyimide Flex material allows the circuit board to be bent and shaped without causing any damage to the board or the components on it.

Our Rigid Flexible PCB is designed to meet the highest industry standards and is available in a maximum panel size of 600mm x 1200mm. This provides a larger surface area for your components and ensures that your circuit board can handle more complex designs.

Our Rigid Flexible PCB is available in different Cu weights, ranging from 0.5-4 oz. This allows you to choose the right Cu weight for your specific application, ensuring that your circuit board can handle the required current and heat dissipation.

Our Rigid Flexible PCB is perfect for applications that require bending circuit boards, such as wearable devices, medical devices, and aerospace technology. Its flexibility and durability make it an excellent choice for applications that require repeated bending and flexing.

At our company, we pride ourselves on our commitment to quality and customer satisfaction. Our Rigid Flexible PCB is designed to meet the highest quality standards, and we use only the best materials and production methods to ensure that your circuit board meets your exact specifications.

Order your Rigid Flexible PCB today and experience the benefits of our high-quality, flexible circuit board!

Features:

• Product Name: Rigid-Flexible Printed Circuit Boards
• Polyimide Base Material: Polyimide Flex
• Drilling Size: Min 0.0078”(0.2mm)
• Layers: 1-36layers
• Service: One-stop Service / OEM,DFM
• Pcb Outline: Square, Circle, Irregular(with Jigs)

Our Rigid Flexible PCB product is perfect for applications that require both the durability of a rigid board and the flexibility of a flexible board. This flexible-rigid printed circuit board is made with a polyimide flex base material, allowing it to bend and twist without breaking. With drilling sizes as small as 0.0078” (0.2mm) and up to 36 layers available, you can trust this Rigid Flex Hybrid PCB to get the job done. We offer a one-stop service, including OEM and DFM, so you can get the exact product you need. PCB outlines can be square, circle, or irregular with jigs for added versatility.

Technical Parameters:

Applications:

One of the main advantages of flexible-rigid printed circuit boards is their ability to bend and flex without breaking. This makes them ideal for use in applications where space is limited or where the board needs to conform to a particular shape. Our rigid flexible PCBs can be bent to a minimum radius of just 0.5mm, making them suitable for even the most demanding applications.

Our flexible-rigid printed circuit boards are available in a range of layer counts, from 2 to 8 layers, and can be produced with up to 36 layers if required. We also carry out 100% functional testing on all of our boards to ensure that they meet the highest standards of quality and reliability.

Our rigid flexible PCBs are suitable for a wide range of applications and scenarios, including:

• Medical devices: Flexible-rigid printed circuit boards are ideal for use in medical devices due to their ability to bend and flex without breaking. They can be used in everything from pacemakers to insulin pumps.
• Aerospace: In the aerospace industry, space is at a premium. Our rigid flexible PCBs can be bent and shaped to fit into even the most confined spaces, making them ideal for use in satellites, spacecraft, and other aerospace applications.
• Automotive: Our rigid flexible PCBs are also suitable for use in the automotive industry. They can be used in everything from electronic control units to dashboard displays.
• Industrial control systems: Our flexible-rigid printed circuit boards are also suitable for use in industrial control systems, where space is often at a premium and the boards need to be able to withstand harsh environmental conditions.

At our company, we take quality seriously. All of our rigid flexible PCBs are produced to the highest standards and are certified to ISO9001, ISO14001, IATF16949, and UL. This ensures that our customers can have complete confidence in the quality and reliability of our products.
